Features

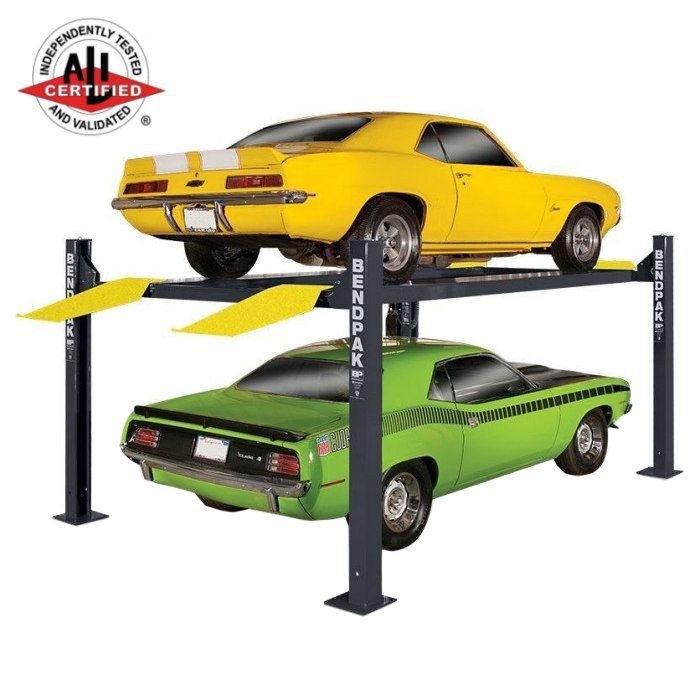

• 9,000-lbs. maximum lifting capacity
• Wide drive-thru with standard lift height and long runways

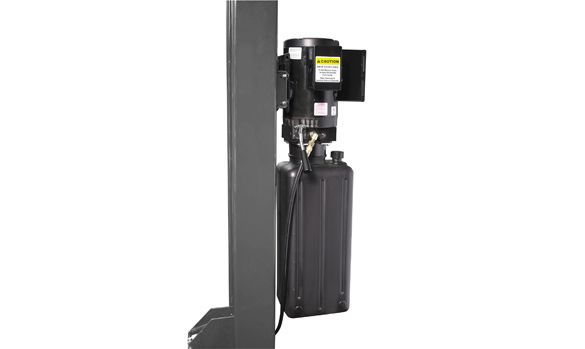

• Electric / hydraulic power system
• Internal "Anti-Sway" slider blocks in each column
• Features heavy-duty 3/8" aircraft cable

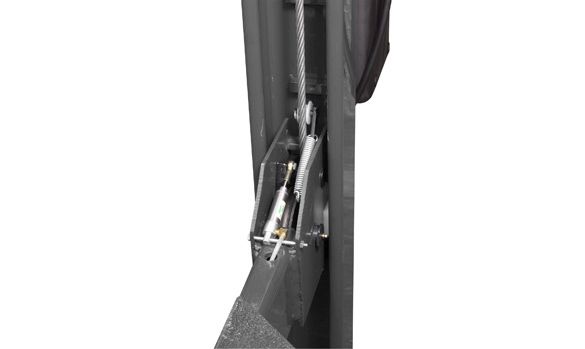

• Multi-position safety locks in each column

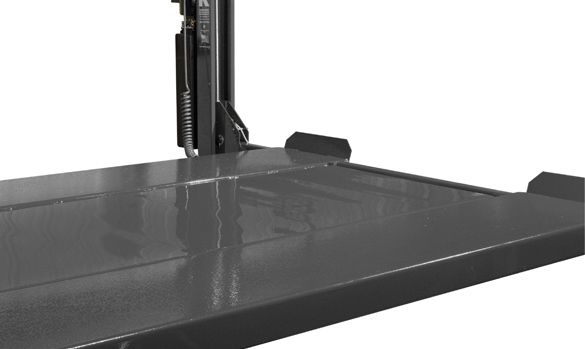

• Runways include rail-kit for optional accessories
• Single hydraulic cylinder underneath runway
• Oversized self-lubricating cable rollers
• Rugged 1-1/4" roller axles
• Adjustable lock ladders

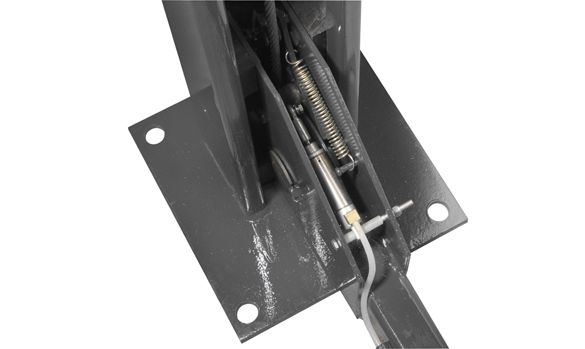

• Push-button pneumatic safety release
• Removable steel approach ramps included

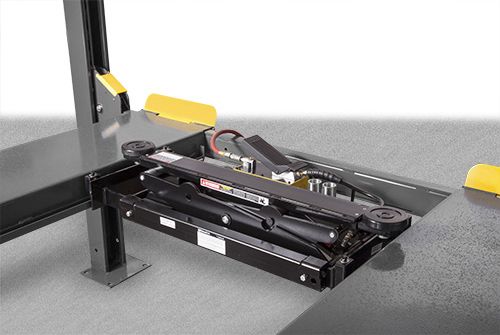

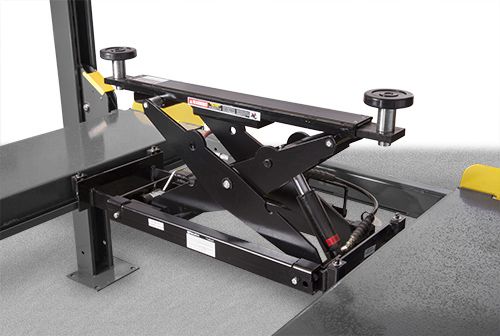

• Optional 4,500-lbs. capacity jack available (Model RJ-45)

Specifications

• Lifting capacity*:9,000 lbs. / 4,082 kg
  • *Max capacity / front axle: 4,500 lbs. / 2,041 kg
  • *Max capacity / rear axle: 4,500 lbs. / 2,041 kg
• Overall width: 110" / 2,965 mm
• Outside length: 198" / 5,029 mm
• Overall length: 224" / 5,690 mm
• Height of columns: 88" / 2,235 mm
• Runway min height: 4-1/2" / 114 mm
• Max rise: 70" / 1,778 mm
• Max lifting height: 74-1/2" / 1,892 mm
• Width between posts: 100"
• Runway width: 19" / 483 mm
• Width between runways: 37-1/4" – 44" / 946 mm – 1,118 mm
• Length of runways: 188" / 4,775 mm
• Min. wheelbase @ rated capacity: 135" / 3,429 mm
• Min. wheelbase @ 75% capacity: 115" / 2,921 mm
• Min. wheelbase @ 50% capacity: 95" / 2,413 mm
• Min. wheelbase @ 25% capacity: 80" / 2,032 mm
• Locking positions: 12
• Lock spacing: every 4" / 102 mm
• Lifting time: 45 sec
• Motor: 220 VAC / 60 Hz / 1 Ph
• Shipping Weight: 2,040 lbs. / 927 kg
• Shipping Dimensions: 204" x 22" x 40" / 5,182 mm x 559 mm x 1,016 mm

Notes: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to  disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply. 110 volt power unit available at no extra charge. Please specify when ordering. Model HD-9 has two different options for runway placement. Runways can be placed 37.25” apart or 44” apart (distance between runways). Can be used for wide or narrow vehicles. Runways are 75.25” apart from outside of runway to outside of runway on HD9ST lift. If your vehicle's wheels are further apart that that, (from outside of wheels) you will need a wide model lift.
